Device interfaces and system components need to be plugged and removed frequently throughout the day, which requires connector performance to perform well during frequent plugging and removing.

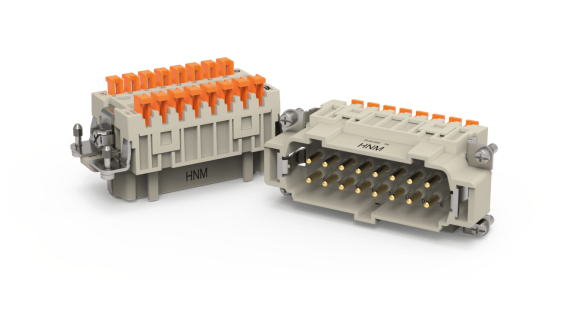

ILME has developed the RSH and RDSH series of plugins for this purpose, with the aim of minimizing operation and system downtime.

These inserts combine the special gilding and lubrication features of the HNM (High match number) line with all the features of ILME's patented SQUICH® line: tool-free connections, fast and reliable wiring, and strong vibration resistance.

Key features:

• Special pins with high performance gold plating for 10000 inserts.
• The RSH series is available with 6/10/16/24 pins, rated at 16A / 500V / 6kV / 3

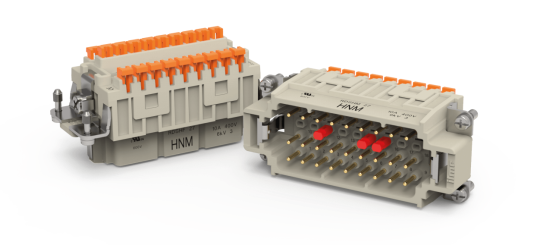

• The RDSH series has a high density pin arrangement, available in 9/18/27/42 pins and rated at 10A / 400V / 6kV / 3
• Each pin has probe points for multimeter measurements and an additional coding system (only RDSH pins have this)
